USB Series

HY24-AB1120

Connects mobile device with external devices (charger, DLC cable, etc.)
Easy-to-use fastening structure (top/bottom independent)
Waterproof
Version 3.1 high-speed data transfer and charging
Strong product using external Body MIM (metal injection material)

Specification

Type	Mount On PCB
Rated current	5.0A, 1.25A, 0.25A / Pin
Rated Voltage	20V AC/DC
Waterproof Type	IPX8
(size : H x W x L)	3.25 x 16.74 x 9.03

HY24-AB1015

Connects mobile device with external devices (charger, DLC cable, etc.)
Easy-to-use fastening structure (top/bottom independent)
Version 3.1 high-speed data transfer and charging
External Body SUS (Press) structure

Specification

Type	Mount On PCB
Rated current	5.0A, 1.25A, 0.25A / Pin
Rated Voltage	20V AC/DC
Waterproof Type	None
(size : H x W x L)	2.96 x 8.74 x 6.75

HY16-AB1500

Connectors connecting mobile devices to external (chargers, DLC cables, etc.)
Easy to use fastening structure without top and bottom separation
USB Type C 2.0 Version
Application of Appearance Body SUS (Press) Structure

Specification

Type	PCB Cut Type
Rated current	5.0A, 1.25A, 0.25A / Pin
Rated Voltage	20V AC/DC
Waterproof Type	None
(size : H x W x L)	2.96 x 11.00 x 6.55

HY16-AB1985

Connectors and external (charge electricity, DLC cable) connection connector
Easy to use fastening structure without top and bottom separation
USB Type C 2.0 Version
Appearance Deepdrawing Shell Integrated Seamless Waterproof Construction

Specification

Type	PCB Cut Type
Rated current	5.0A, 1.25A, 0.25A / Pin
Rated Voltage	20V AC/DC
Waterproof Type	IPX8
(Size : H x W x L)	4.11 x 15.82 x 10.88

HY24-AB1990

Connectors connecting mobile devices to external (chargers, DLC cables, etc.)
Easy to use fastening structure without top and bottom separation
USB Type C 3.2 Version Fast Data Transfer, Charging
Appearance Deepdrawing Shell Integrated Seamless Waterproof Construction

Specification

Type	PCB Cut Type
Rated current	5.0A, 1.25A, 0.25A / Pin
Rated Voltage	20V AC/DC
Waterproof Type	IPX8
(size : H x W x L)	4.00 x 15.82 x 10.88

HY24-AB3200

Connectors connecting mobile devices to external (chargers, DLC cables, etc.)
Ease of use of fastening structure without distinction between top and bottom
USB Type C 3.2 Version Fast Data Transfer, Charging
rigid production with external BIM ( metal outlet)

Specification

Type	PCB Cut Type
Rated current	5.0A, 1.25A, 0.25A / Pin
Rated Voltage	20V AC/DC
Waterproof Type	IPX8
(size : H x W x L)	3.72 x 18.23 x 9.65

HY24-AB3300

Connectors connecting mobile devices to external (chargers, DLC cables, etc.)
Ease of use of fastening structure without distinction between top and bottom
USB Type C 3.2 Version Fast Data Transfer, Charging
Exterior body MIM (metal injection) rigid product

Specification

Type	PCB Cut Type
Rated current	5.0A, 1.25A, 0.25A / Pin
Rated Voltage	20V AC/DC
Waterproof Type	IPX8
(size : H x W x L)	3.72 x 15.82 x 9.68

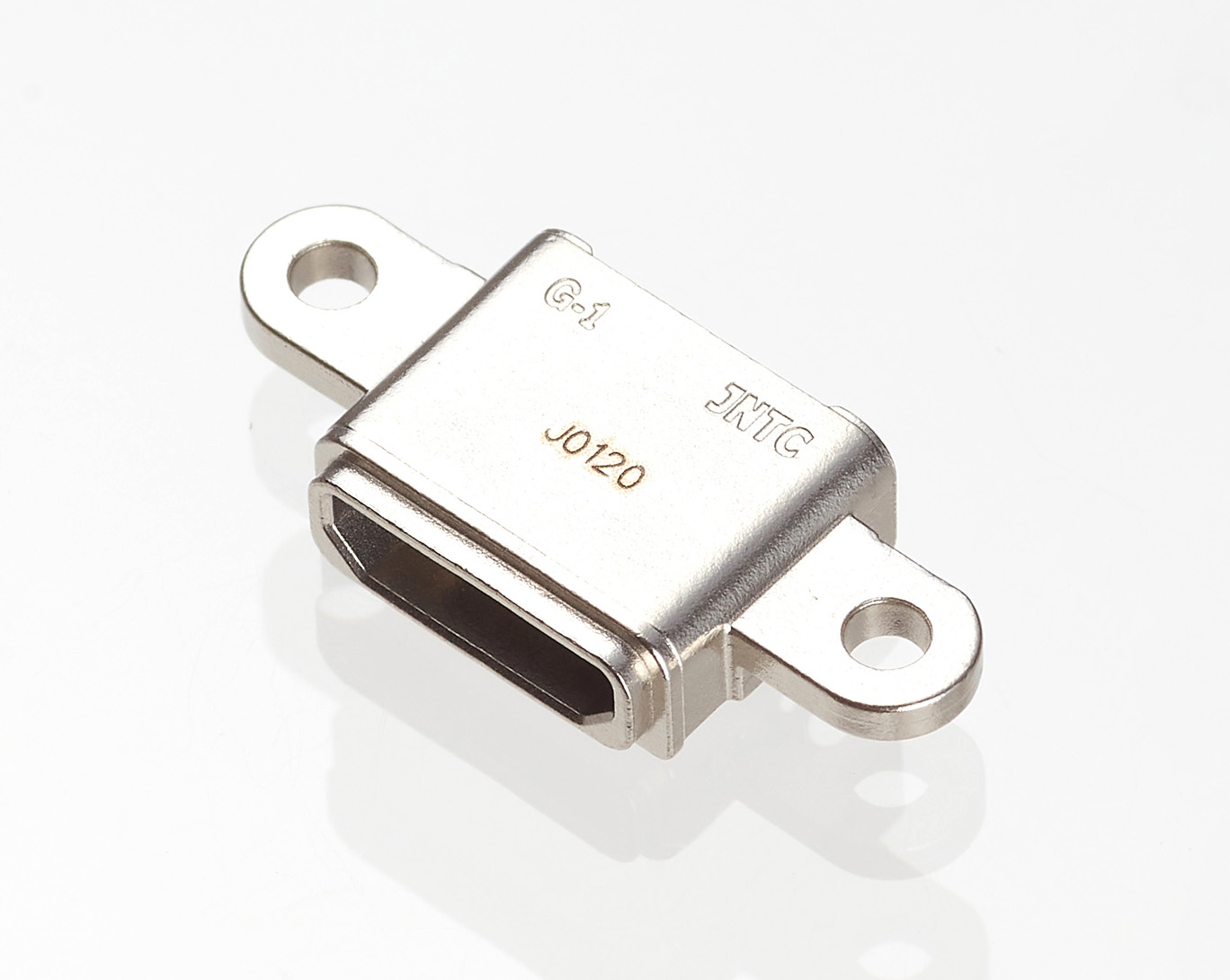

HY07-AB1740

Connects mobile device with external devices (charger, DLC cable, etc.)
Waterproof
Version 2.0
Strong product using external Body MIM (metal injection material)

Specification

Type	Mount On PCB
Rated current	1.8A, 0.5A / Pin
Rated Voltage	30V AC/DC
Waterproof Type	IPX8
(size : H x W x L)	3.08 x 17.30 x 7.30

HY07-AB1790

Connects mobile device with external devices (charger, DLC cable, etc.)
Version 2.0
External Body SUS (Press) structure

Specification

Type	Mid Mount
Rated current	1.8A, 0.5A / Pin
Rated Voltage	30V AC/DC
Waterproof Type	None
(size : H x W x L)	1.41 x 10.6 x 6.8

HY08-AC2700

Connects mobile device with external devices (charger, DLC cable, etc.)
Easy-to-use fastening structure (top/bottom independent)
External Body SUS (Press) structure

Specification

Type	Mount On PCB
Rated current	5.0A, 1.25A, 0.25A / Pin
Rated Voltage	20V AC/DC
Waterproof Type	None
(size : H x W x L)	8.62 x 10.70 x 4.60

HY24-AC2950

Connects mobile device with external devices (charger, DLC cable, etc.)
Easy-to-use fastening structure (top/bottom independent)
External Body SUS (Press) structure

Specification

Type	Mount On PCB
Rated current	5.0A, 1.25A, 0.25A / Pin
Rated Voltage	20V AC/DC
Waterproof Type	None
(size : H x W x L)	7.38 x 11.85 x 4.30
