제품커넥터Card Socket Series
Card Socket Series

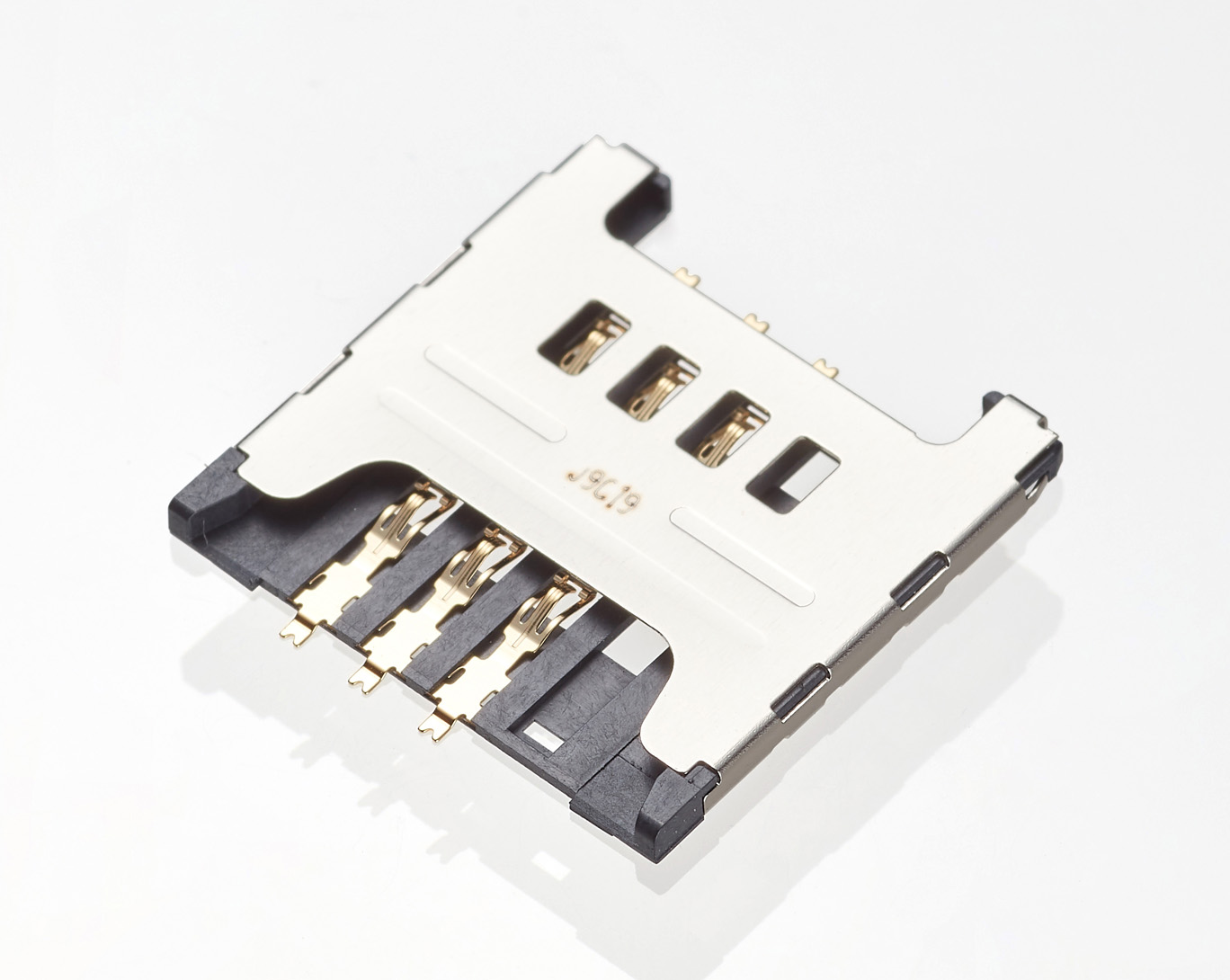

5000-6P-1.5T
- USIM 카드 Socket 커넥터
Specification
| Type | USIM Socket |
|---|---|
| Rated current | 1.0A / Pin (6Pin) |
| Rated Voltage | 30V AC/DC |
| (size : H x W x L) | 1.5 x 17.8 x 17.8 |

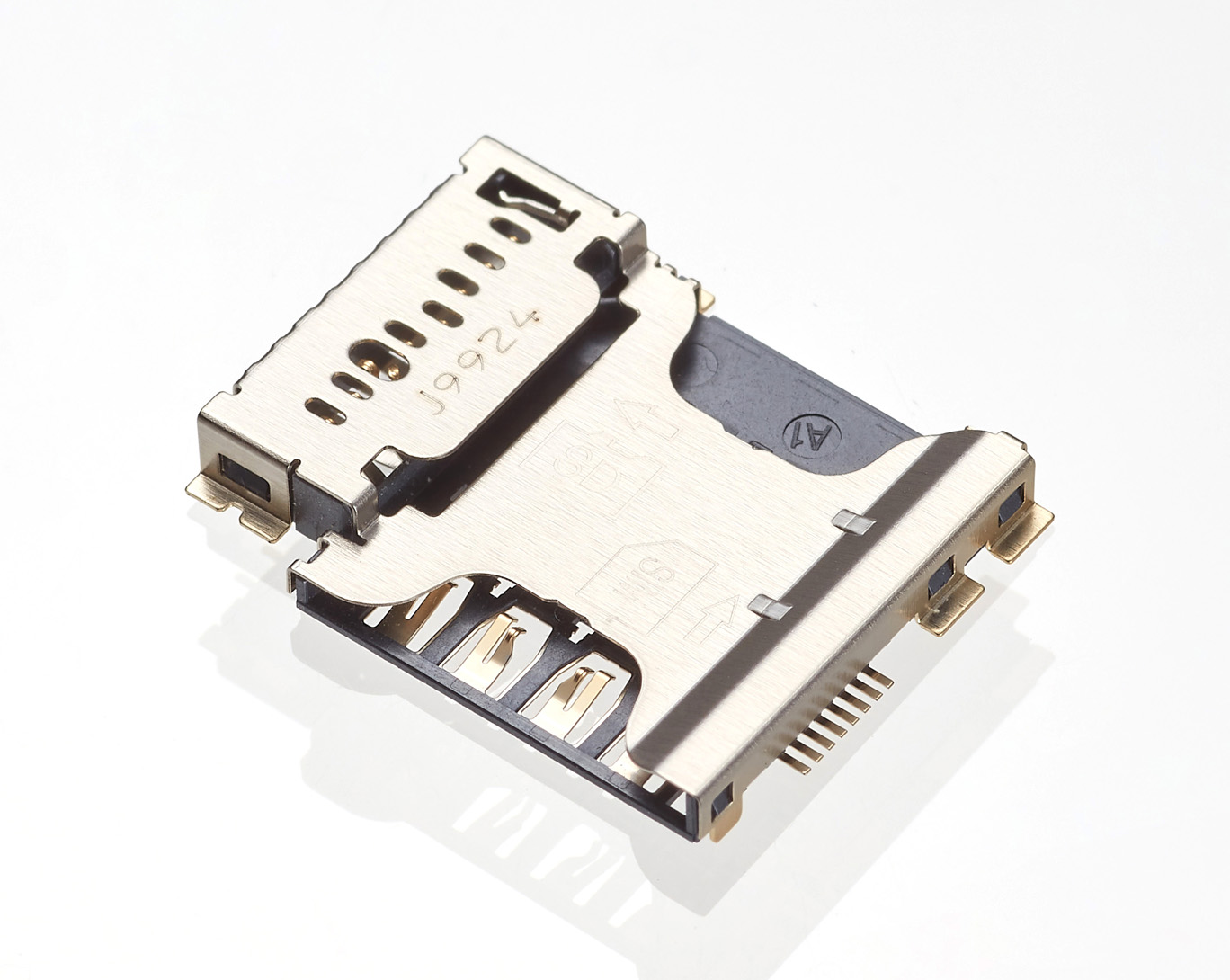

5000-8P-1.5ML3
- Micro SIM 카드 Socket 커넥터
Specification
| Type | Micro SIM Socket |
|---|---|
| Rated current | 1.0A / Pin (8Pin) |
| Rated Voltage | 30V AC/DC |
| (size : H x W x L) | 1.5 x 13.4 x 14.15 |

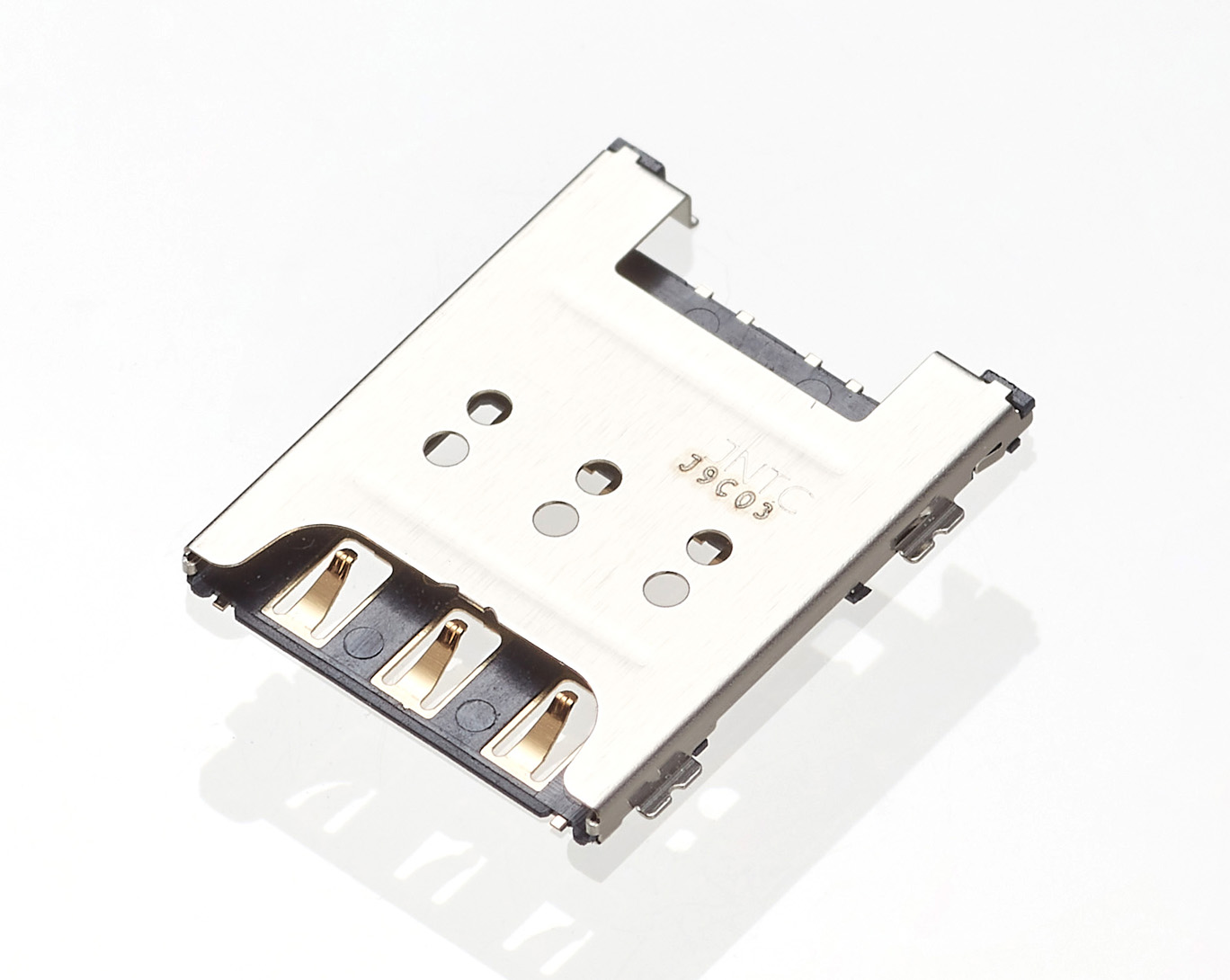

5000-FA0100
- Nano SIM 카드 Socket 커넥터
Specification
| Type | Nano SIM Socket |
|---|---|
| Rated current | 0.5A / Pin (6Pin) |
| Rated Voltage | 10V AC/DC |
| (size : H x W x L) | 1.05 x 9.7 x 12.2 |

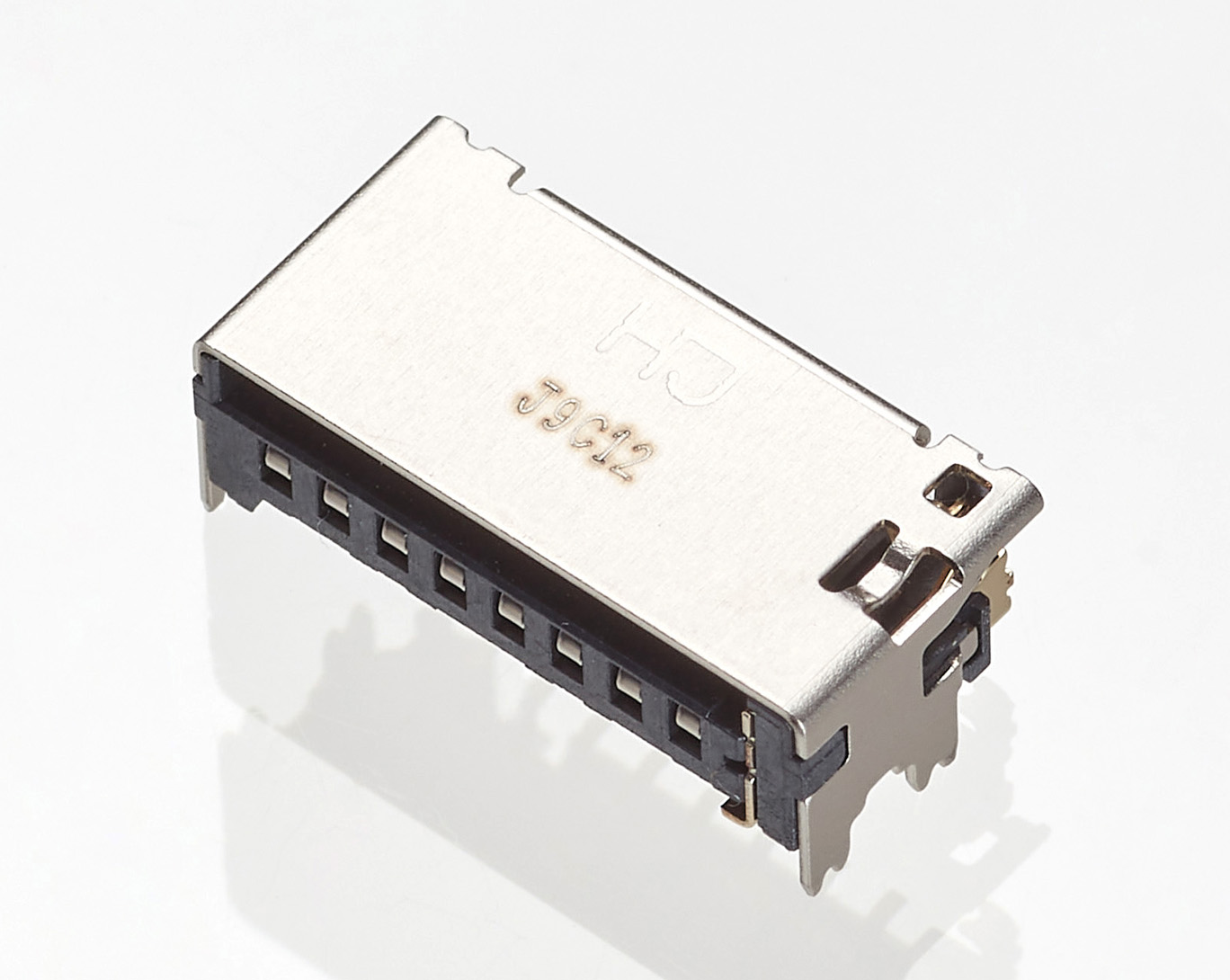

HD08-AL0335
- Micro SD Memory 카드 Socket 커넥터
Specification
| Type | Micro SD Memory |
|---|---|
| Rated current | 0.5A / Pin (8Pin) |
| Rated Voltage | 5V DC |
| (size : H x W x L) | 3.35 x 11.5 x 5.5 |

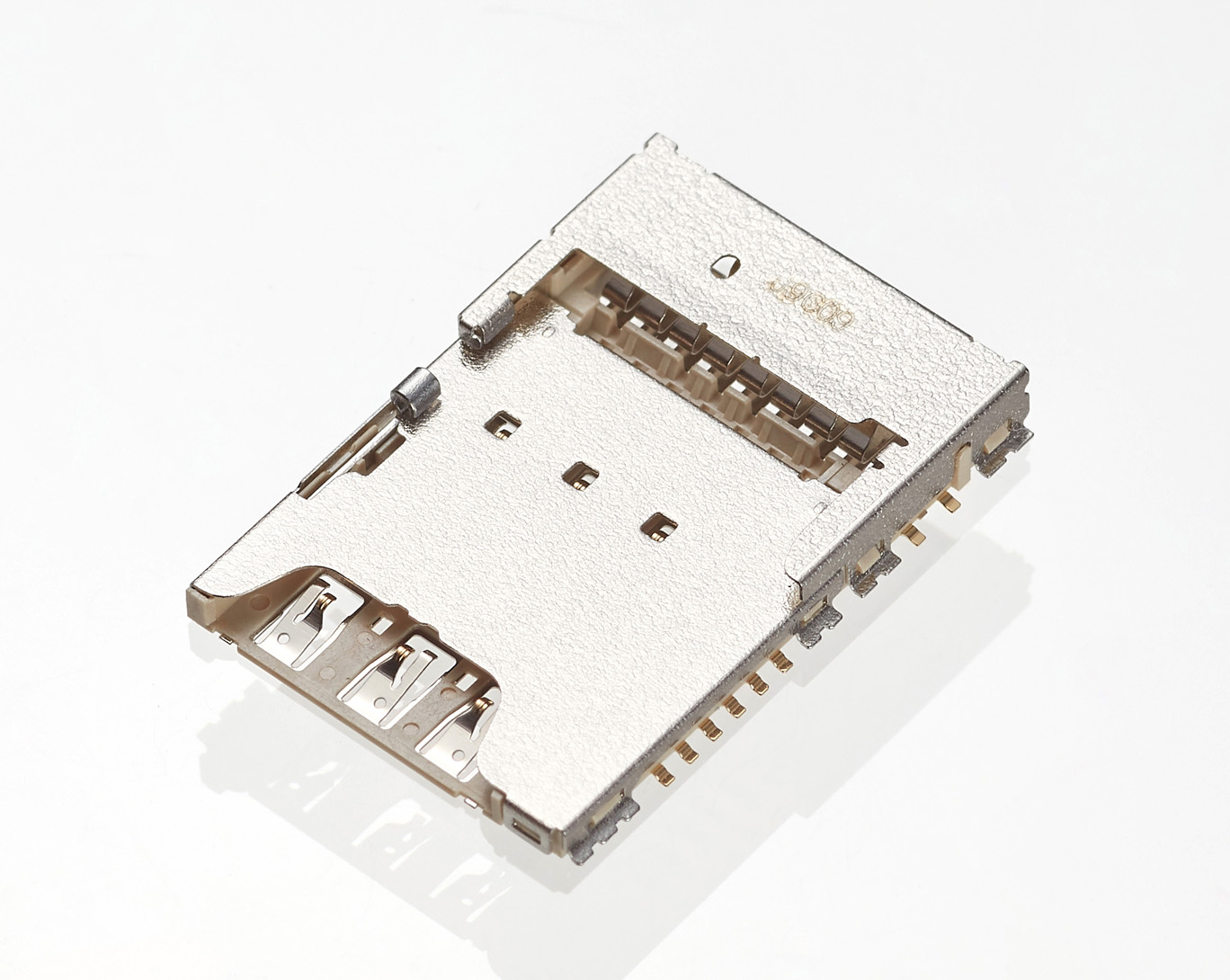

5000-FC0600
- Nano SIM 카드 및 Micro SD Memory 카드 Socket
Specification
| Type | Nano SIM+Micro SD |
|---|---|
| Rated current | 0.5A / Pin (17Pin) |
| Rated Voltage | 10V AC |
| (size : H x W x L) | 2.05 x 12.2 x 17.9 |
HD17-AL0245
- Micro SIM 카드 및 Micro SD Memory 카드 Socket
Specification
| Type | Micro SD + Micro SIM |
|---|---|
| Rated current | 0.5A / Pin (17Pin) |
| Rated Voltage | 30V AC |
| (size : H x W x L) | 2.50 x 17.75 x 14.30 |
